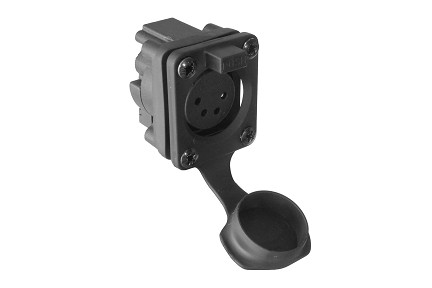

AXS4FP1H 4 Pole Horizontal Female Receptacle PCB Mount with Protective Cap, IP65, For 1.5mm to 2.0mm Panel Thickness
AXS4FP1H 4 Pole Horizontal Female Receptacle PCB Mount with Protective Cap, IP65, For 1.5mm to 2.0mm Panel Thickness

AXS4FP1H 4 Pole Horizontal Female Receptacle PCB Mount with Protective Cap, IP65, For 1.5mm to 2.0mm Panel Thickness

$0.00
Chassis Mounts
PART NUMBER: AXS4FP1H
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • No. of Poles: 4
  • Contact Type: Socket
  • Gender: Female
  • Contact Plating: Tin
  • Current Carrying Capacity: 10A
  • Voltage Rating: 133V
  • Termination: Printed Circuit Board (PCB)
  • Max. Wire Gauge: 16AWG
  • Housing Material: Thermoplastic
  • Finish: Black
  • IP Rating: IP65
  • Operating Temperature: -25°C to +75°C
  • Flammability Rating: UL94V-0
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
  • Mating Cycles: 1000
  • Mating Part(s)*: AX4M*
4 Pole Horizontal Female Receptacle PCB Mount with Protective Cap, IP65, For 1.5mm to 2.0mm Panel Thickness
