  7. AXS3FP 3 Pole Female Receptacle Chassis Mount with Protective Cap, IP65, Solder Bucket, For 1.0mm to 1.5mm Panel Thickness. Comparable to PN# NC3FDX-TOP

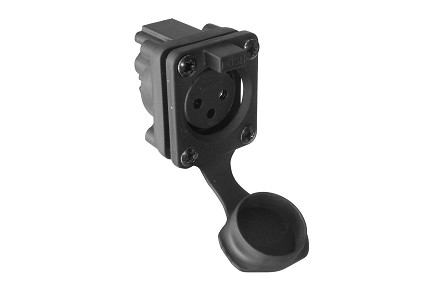

AXS3FP 3 Pole Female Receptacle Chassis Mount with Protective Cap, IP65, Solder Bucket, For 1.0mm to 1.5mm Panel Thickness. Comparable to PN# NC3FDX-TOP
AXS3FP 3 Pole Female Receptacle Chassis Mount with Protective Cap, IP65, Solder Bucket, For 1.0mm to 1.5mm Panel Thickness. Comparable to PN# NC3FDX-TOP

AXS3FP 3 Pole Female Receptacle Chassis Mount with Protective Cap, IP65, Solder Bucket, For 1.0mm to 1.5mm Panel Thickness. Comparable to PN# NC3FDX-TOP

$0.00
Chassis Mounts
PART NUMBER: AXS3FP
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • No. of Poles: 3
  • Contact Type: Socket
  • Gender: Female
  • Contact Plating: Tin
  • Current Carrying Capacity: 15A
  • Voltage Rating: 133V
  • Termination: Solder Bucket
  • Max. Wire Gauge: 14AWG
  • Housing Material: Thermoplastic
  • Finish: Black
  • IP Rating: IP65
  • Operating Temperature: -25°C to +75°C
  • Flammability Rating: UL94V-0
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
  • Mating Cycles: 1000
  • Mating Part(s)*: AX3M*
3 Pole Female Receptacle Chassis Mount with Protective Cap, IP65, Solder Bucket, For 1.0mm to 1.5mm Panel Thickness. Comparable to PN# NC3FDX-TOP
