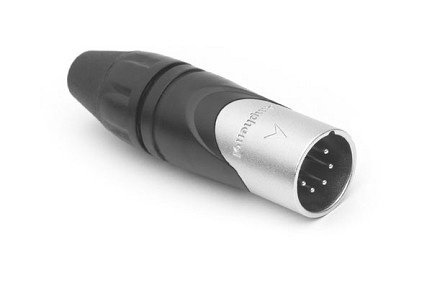

AX5M 5 Pole XLR Male Cable Connector, Black Finish. Comparable to PN# NC5MXX
AX5M 5 Pole XLR Male Cable Connector, Black Finish. Comparable to PN# NC5MXX

AX5M 5 Pole XLR Male Cable Connector, Black Finish. Comparable to PN# NC5MXX

$0.00
Audio Cable Connector
PART NUMBER: AX5M
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Finish: Black
  • Positions: 5
  • Gender: Male
  • Contact Plating: Silver
  • IP Rating: IP40
  • Current Carrying Capacity: 7.5A
  • Termination: Solder
  • Max Wire Gauge: 18AWG
  • Flammability Rating: UL94V-0
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
  • Service Voltage RMS: 133V (not suitable for domestic applications above 50V)
  • Test Voltage AC RMS: 1400V
  • Typical Contact Resistance: < 3mΩ
  • Insulation Resistance: < 1GΩ
  • Operating Temperature: -25°C to +75°C (-13°F to -167°F)
  • Insertion and Withdrawal Force: > 10N - < 30N
  • Typical Cable Retention Force: Approximately 22Kg to 44Kg, depending on cable material and diameter
  • Cable OD Range: 3mm to 8mm (0.11" to 0.314")
  • Mating Cycles: 1000
  • Housing Material: Diecast Zinc Alloy
  • Contact Type: Machined
  • Application(s): Audio & Lighting
5 Pole XLR Male Cable Connector, Black Finish. Comparable to PN# NC5MXX
