  8. AX5FD-M3 5 Pole XLR Female Chassis Mount, Standard (M3 Threaded Holes), Machined Contacts, Nickel Finish

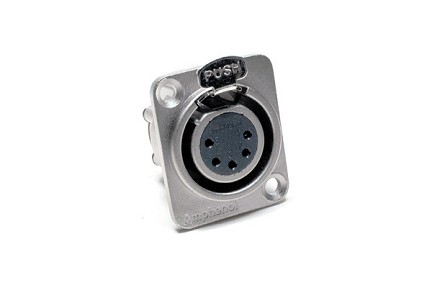

AX5FD-M3 5 Pole XLR Female Chassis Mount, Standard (M3 Threaded Holes), Machined Contacts, Nickel Finish
AX5FD-M3 5 Pole XLR Female Chassis Mount, Standard (M3 Threaded Holes), Machined Contacts, Nickel Finish

AX5FD-M3 5 Pole XLR Female Chassis Mount, Standard (M3 Threaded Holes), Machined Contacts, Nickel Finish

$0.00
Connectors
PART NUMBER: AX5FD-M3
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Positions: 5
  • Gender: Female
  • Current Carrying Capacity: 7.5A
  • Housing Material: Diecast Zinc Alloy
  • IP Rating: IP40
  • Finish: Nickel
  • Termination: Solder Bucket / Printed Circuit Board (PCB)
  • Operating Temperature: -25°C to +75°C (-13°F to +167°F)
  • Flammability Rating: UL94V-0
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
  • Typical Contact Resistance: <3mΩ
  • Insulation Resistance: >1000mΩ
  • Mating Cycles: 1000
5 Pole XLR Female Chassis Mount, Standard (M3 Threaded Holes), Machined Contacts, Nickel Finish
