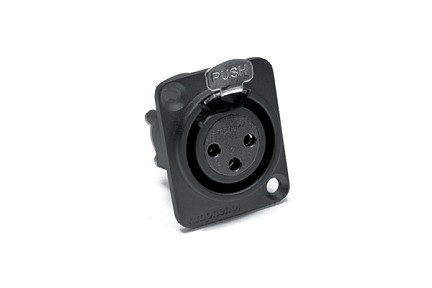

AX3FDB 3 Pole XLR Female Chassis Mount, Standard, Stamped Contacts, Black Finish
AX3FDB 3 Pole XLR Female Chassis Mount, Standard, Stamped Contacts, Black Finish

AX3FDB 3 Pole XLR Female Chassis Mount, Standard, Stamped Contacts, Black Finish

$0.00
Connectors
PART NUMBER: AX3FDB
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Positions: 3
  • Gender: Female
  • Current Carrying Capacity: 15A
  • Housing Material: Diecast Zinc Alloy
  • IP Rating: IP40
  • Finish: Black
  • Termination: Solder Bucket / Printed Circuit Board (PCB)
  • Operating Temperature: -25°C to +75°C (-13°F to +167°F)
  • Flammability Rating: UL94V-0
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
  • Typical Contact Resistance: <3mΩ
  • Insulation Resistance: >1000mΩ
  • Mating Cycles: 1000
3 Pole XLR Female Chassis Mount, Standard, Stamped Contacts, Black Finish
