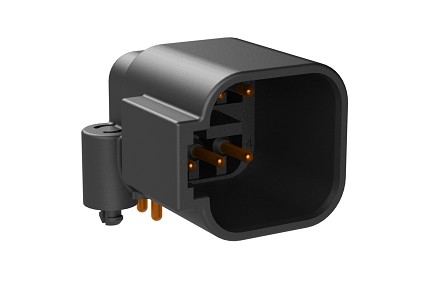

ATF13-6P-BM01 6 Position 90° Receptacle, Pin, Gold contact plating, PCB, Board Mount, Black
ATF13-6P-BM01 6 Position 90° Receptacle, Pin, Gold contact plating, PCB, Board Mount, Black

ATF13-6P-BM01 6 Position 90° Receptacle, Pin, Gold contact plating, PCB, Board Mount, Black

$0.00
90° Receptacle
PART NUMBER: ATF13-6P-BM01
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • No. of Positions: 6
  • Amperage: 13A
  • Wire Range: 14-20 AWG (2.0-0.5mm²)
  • IP Rating: IP67
  • Volts: 250 DC
  • Contacts Included: TRUE
  • Contact Size: 16
  • Contact Type (Pin/Socket): Pin
  • Plating: Gold
  • Contact Material: Copper Alloy
  • Gender: Male
  • Color: Black
  • Operating Temperature: -55°C to +125°C
  • Housing Material: Thermoplastic
  • Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @1500 volts AC
  • Insulation Resistance: 1000 Megaohm min @ 25°C
  • RoHS Compliant?: TRUE
  • Mating Cycle Durability: 100
  • Mating Part(s): AT06-6S* Plug
6 Position 90° Receptacle, Pin, Gold contact plating, PCB, Board Mount, Black
