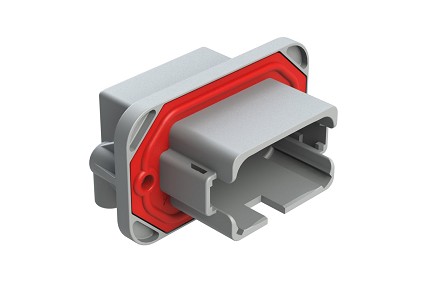

AT13-12PA-BM21CP 12 Position 90° Flange Mount PCB Receptacle
AT13-12PA-BM21CP 12 Position 90° Flange Mount PCB Receptacle
AT13-12PA-BM21CP 12 Position 90° Flange Mount PCB Receptacle
$0.00
12 Position RA Flange Mount PCB Receptacle
PART NUMBER:
AT13-12PA-BM21CP
Datasheet
:
View / Download
3D Model
:
View/Download
12
Rectangular / Other
67
13
Plastic
SPECIFICATIONS:
No. of Positions:
12, A Key
Amperage:
13A
Contacts Included:
No
Contact Type (Pin/Socket):
Pin
Gender:
Male
Housing Material:
Thermoplastic
Voltage Rating:
250V
Shape:
Rectangular
Color:
Grey
IP Rating:
IP67 (in mated condition)
Operating Temperature:
-55°C to +125°C
Seal Material:
Silicone Rubber
Dielectric Value:
Dielectric withstanding voltage: less than 2 mlliamps current leakage @ 1500 volts AC
Insulation Resistance:
1000 megohms at 25°C
Mounting Style:
Board Mount
Mating Cycle Durability:
>100
RoHS Compliant:
Yes
Mating Part(s)*:
AT06-12SA* PLUG
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
12 Position 90° Flange Mount PCB Receptacle
View/Download
Heavy Equipment,Agriculture,Construction,Transportation,Off Road Recreation,Mining,Industrial,Railway,Automotive,Diagnostics,Marine,Water Resistance,Harsh Environments,Board-to-Board and Board-to-Cable Solutions
A Series~AT|A Series~BoardLock
Connectors~Board Mount|Connectors~Receptacles|Connectors~Pin (Male)
