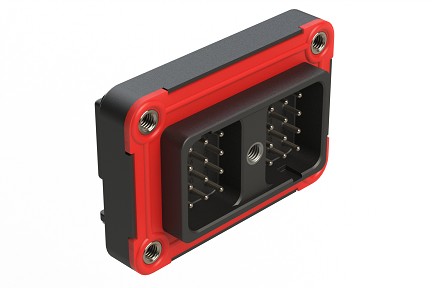

  6. ARC13-24PA-BM03SP1 24 Position PCB Header,Receptacle Pin, Flange Mount, 90°, Nickel Plating, Threaded Insert for Jackscrew, Gasket, Keyed A, Black. Comparable to PN# DRC13-24PA
ARC13-24PA-BM03SP1 24 Position PCB Header,Receptacle Pin, Flange Mount, 90°, Nickel Plating, Threaded Insert for Jackscrew, Gasket, Keyed A, Black. Comparable to PN# DRC13-24PA
ARC13-24PA-BM03SP1 24 Position PCB Header,Receptacle Pin, Flange Mount, 90°, Nickel Plating, Threaded Insert for Jackscrew, Gasket, Keyed A, Black. Comparable to PN# DRC13-24PA

ARC13-24PA-BM03SP1 24 Position PCB Header,Receptacle Pin, Flange Mount, 90°, Nickel Plating, Threaded Insert for Jackscrew, Gasket, Keyed A, Black. Comparable to PN# DRC13-24PA

$0.00
90° Flange Mount PCB Receptacle
PART NUMBER: ARC13-24PA-BM03SP1
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • No. of Positions: 24
  • Contact Size: 16
  • Contact Type (Pin/Socket): Pin
  • Gender: Male
  • Contacts Included: Yes
  • Amperage: 13
  • Voltage: 250
  • Housing Material: Thermoplastic
  • Operating Temperature: -55°C to +125°C
  • IP Rating: IP68 and IP69K (in mated condition)
  • Plating: Nickel
  • Contact Material: Copper Alloy
  • Color: Black
  • Shape: Rectangular
  • Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @ 1500 volts AC
  • Insulation Resistance: 1000 megaohms min @ 25°C
  • Seal Material: Silicone Rubber
  • Mating Cycle Durability: >100
  • RoHS Compliant: Yes
  • Mating Part(s)*: ARC16-24SA*
24 Position PCB Header,Receptacle Pin, Flange Mount, 90°, Nickel Plating, Threaded Insert for Jackscrew, Gasket, Keyed A, Black. Comparable to PN# DRC13-24PA
