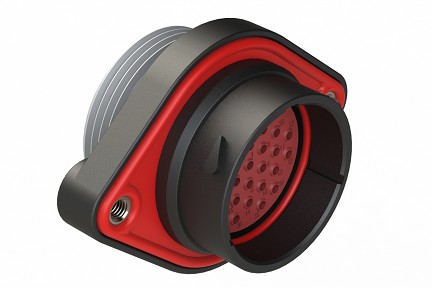

AHDP02-24-31PT-WTA 31 Positions, Sealed Panel Mount Receptacle, Pin, Shell Size 24, Standard Arrangement, Thin Diameter Seal, Wide Thread Adapter
AHDP02-24-31PT-WTA 31 Positions, Sealed Panel Mount Receptacle, Pin, Shell Size 24, Standard Arrangement, Thin Diameter Seal, Wide Thread Adapter

AHDP02-24-31PT-WTA 31 Positions, Sealed Panel Mount Receptacle, Pin, Shell Size 24, Standard Arrangement, Thin Diameter Seal, Wide Thread Adapter

$0.00
Panel Mount Receptacle
PART NUMBER: AHDP02-24-31PT-WTA
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Size: 24
  • No. of Positions: 31
  • Contact Size(s): 16
  • Contact Type (Pin/Socket): Pin
  • Contacts Included?: FALSE
  • Gender: Male (Standard)
  • Wire Range: 14-20 AWG (2.0-0.5mm²)
  • Amperage: 13A
  • Housing Material: Thermoplastic
  • Voltage: 250 V
  • Operating Temperature: -55°C to +125°C
  • Color: Black
  • IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition), IP69K (in mated condition)
  • Dielectric Value: Dielectric withstanding voltage less than 2 milliamps current leakage @1500 volts AC
  • Insulation Resistance: 1000 Megaohm min @ 25°C
  • Seal Material: Silicone Rubber
  • Seal Diameter: 2.23mm (.088") - 2.69mm (.106")
  • Rear Seal Type: Thin Seal
  • RoHS Compliant?: TRUE
  • Mating Cycle Durability: >100
  • Mating Part*: AHDP06-24-31S
31 Positions, Sealed Panel Mount Receptacle, Pin, Shell Size 24, Standard Arrangement, Thin Diameter Seal, Wide Thread Adapter
