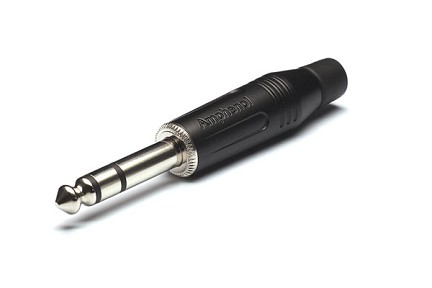

ACPS-GB 1/4' Stereo Straight Plug, Musician Range, Black Finish

ACPS-GB 1/4" Stereo Straight Plug, Musician Range, Black Finish

$0.00

1/4" Phone Plug Stereo Assembly

PART NUMBER: ACPS-GB

Datasheet:

View / Download

Positions: 2
Finish: Black
IP Rating: IP40
Current Carrying Capacity: 10A (depending on mating connector and cable)
Termination: Solder
Max Wire Gauge: AWG 18˜1mm²
Flammability Rating: UL94V-0 or UL94-HB
Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
Typical Contact Resistance: Depends on mating connector
Insulation Resistance: < 2GΩ / >10³ Meg Ω after Damp Heat Test
Operating Temperature: -25°C to +70°C (-13°F to 158°F)
Insertion and Withdrawal Force: > 10N - < 30N
Cable OD Range: 3mm to 6.5 mm (0.118" to 0.256")
Mating Cycles: Min. of 1000 cycles without any physical damage
Housing Material: Diecast Zinc Alloy EZDA No.3
Application(s): Audio & Lighting

QUANTITY

Description

1/4" Stereo Straight Plug, Musician Range, Black Finish
