  7. ACJS-PVB-5 1/4" Single Vertical PCB Phone Jack, Stereo (5 Channels), Plastic Bore, Plastic Nut, Plastic Thread. Comparable to PN# NJ5FD-V/CS
ACJS-PVB-5 1/4

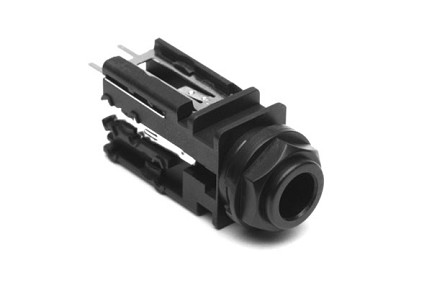

ACJS-PVB-5 1/4' Single Vertical PCB Phone Jack, Stereo (5 Channels), Plastic Bore, Plastic Nut, Plastic Thread. Comparable to PN# NJ5FD-V/CS

ACJS-PVB-5 1/4" Single Vertical PCB Phone Jack, Stereo (5 Channels), Plastic Bore, Plastic Nut, Plastic Thread. Comparable to PN# NJ5FD-V/CS

$0.00
1/4" Vertical Phone Jack
PART NUMBER: ACJS-PVB-5
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Current Carrying Capacity: 10A (Depends on Mating Connector and Cable)
  • Housing Material: Nylon PA66 30% Glass Filled
  • IP Rating: IP40
  • Termination: Solder, PCB or Combo
  • Operating Temperature: -25°C to +70°C (-13°F to 158°F)
  • Mating Cycles: Min. of 10,000 cycles
  • Voltage: 34V
  • Flammability Rating: UL94V-0 or UL94-HB
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
  • Application(s): Audio & Lighting
1/4" Single Vertical PCB Phone Jack, Stereo (5 Channels), Plastic Bore, Plastic Nut, Plastic Thread. Comparable to PN# NJ5FD-V/CS
