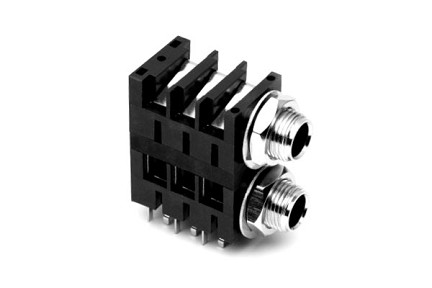

  7. ACJS-MHDCM 1/4" Dual Horizontal PCB Phone Jack, Stereo, Metal Bore, Metal Nut, Metal Thread, Snap-fit PCB
ACJS-MHDCM 1/4
ACJS-MHDCM 1/4' Dual Horizontal PCB Phone Jack, Stereo, Metal Bore, Metal Nut, Metal Thread, Snap-fit PCB

ACJS-MHDCM 1/4" Dual Horizontal PCB Phone Jack, Stereo, Metal Bore, Metal Nut, Metal Thread, Snap-fit PCB

$0.00
1/4" Phone Jack Connector
PART NUMBER: ACJS-MHDCM
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Current Carrying Capacity: 10A (Depends on Mating Connector and Cable)
  • Housing Material: Nylon PA66 30% Glass Filled
  • IP Rating: IP40
  • Termination: PCB
  • Operating Temperature: -25°C to +70°C (-13°F to 158°F)
  • Mating Cycles: Min. of 10,000 cycles
  • Voltage: 34V
  • Flammability Rating: UL94V-0 or UL94-HB
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
  • Application(s): Audio & Lighting
1/4" Dual Horizontal PCB Phone Jack, Stereo, Metal Bore, Metal Nut, Metal Thread, Snap-fit PCB
