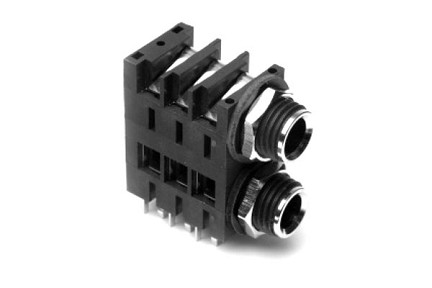

ACJS-MHDC 1/4
ACJS-MHDC 1/4' Dual Horizontal PCB Phone Jack, Stereo, Metal Bore, Metal Nut, Metal Thread, Snap-fit PCB

ACJS-MHDC 1/4" Dual Horizontal PCB Phone Jack, Stereo, Metal Bore, Metal Nut, Metal Thread, Snap-fit PCB

$0.00
1/4" Stereo Phone Jack
PART NUMBER: ACJS-MHDC
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Positions: 3
  • Finish: Black
  • IP Rating: IP40
  • Current Carrying Capacity: 10A (depending on mating connector)
  • Termination: Solder
  • Flammability Rating: UL94V-0
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
  • Typical Contact Resistance: < 10mΩ
  • Insulation Resistance: < 2GΩ / >10³ Meg Ω after Damp Heat Test
  • Operating Temperature: -25°C to + 70°C (-13°F to 158°F)
  • Insertion and Withdrawal Force: > 10N - < 30N
  • Mating Cycles: 1000
  • Housing Material: Nylon PA66 30% Glass filled
ACJS-MHDC 1/4" Dual Horizontal PCB Phone Jack, Stereo, Metal Bore, Metal Nut, Metal Thread, Snap-fit PCB
