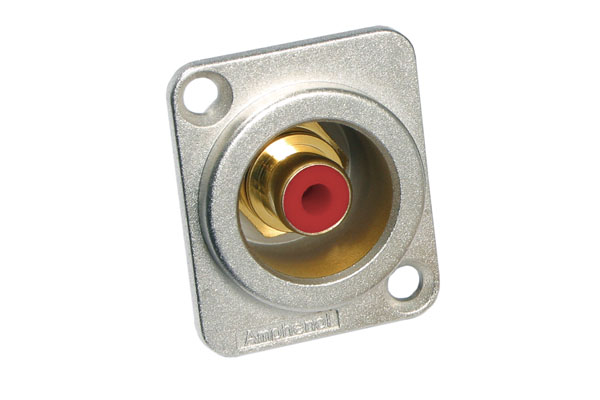

ACJD-RED RCA D Type Chassis Mount, Female, Gold Plated Contacts, Red Insulation. Comparable to PN# NF2D-2
ACJD-RED RCA D Type Chassis Mount, Female, Gold Plated Contacts, Red Insulation. Comparable to PN# NF2D-2
ACJD-RED RCA D Type Chassis Mount, Female, Gold Plated Contacts, Red Insulation. Comparable to PN# NF2D-2
$0.00
RCA D-Shell Audio Connector
PART NUMBER:
ACJD-RED
Datasheet
:
View / Download
2
Circular
40
10
Metal
SPECIFICATIONS:
Positions:
2
Finish:
Nickel
Gender:
Female
Contact Plating:
Gold
IP Rating:
IP40
Current Carrying Capacity:
10A (depending on mating connector)
Termination:
Solder
Max Wire Gauge:
14AWG - 2.5mm²
Flammability Rating:
UL94V-0
Environmental:
Complies with EU RoHS 2 Directive 2011/65/EU
Typical Contact Resistance:
< 10mΩ (Depends on mating connector)
Insulation Resistance:
< 2GΩ / >10³ Meg Ω after Damp Heat Test
Operating Temperature:
-25°C to + 75°C (-13°F to 157°F)
Insertion and Withdrawal Force:
> 10N - < 30N
Cable OD Range:
3mm to 7mm (0.11" to 0.275")
Mating Cycles:
500
Housing Material:
Diecast Zinc Alloy EZDA No.3
Application(s):
Audio & Lighting
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
RCA D Type Chassis Mount, Female, Gold Plated Contacts, Red Insulation. Comparable to PN# NF2D-2
Audio & Entertainment
Audio & Entertainment~RCA~M~D Type
Audio~Chassis Mount|Audio~Connector~Socket (Female)
