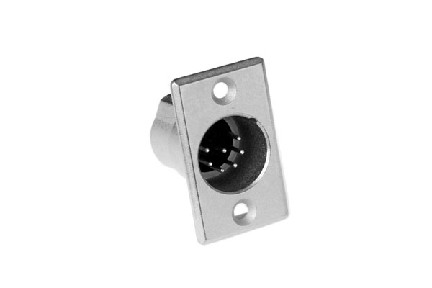

AC7MPNZ 7 Pole XLR Male Chassis Mount, PN Flange, Machined Contacts, Solder Bucket, Nickel Finish. Comparable to PN# NC7MP
AC7MPNZ 7 Pole XLR Male Chassis Mount, PN Flange, Machined Contacts, Solder Bucket, Nickel Finish. Comparable to PN# NC7MP

AC7MPNZ 7 Pole XLR Male Chassis Mount, PN Flange, Machined Contacts, Solder Bucket, Nickel Finish. Comparable to PN# NC7MP

$0.00
XLR Male Chassis Mount
PART NUMBER: AC7MPNZ
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Positions: 7
  • Gender: Male
  • Current Carrying Capacity: 5A
  • Housing Material: Diecast Zinc Alloy
  • Finish: Nickel
  • Contact Type: Machined
  • Contact Plating: Gold
  • IP Rating: IP40
  • Termination: Solder bucket
  • Max Wire Gauge: 20AWG
  • Operating Temperature: -25°C to +75°C (-13°F to + 167°F)
  • Mating Cycles: 1000
  • Flammability Rating: UL94V-0
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
  • Application(s): Audio & Lighting
7 Pole XLR Male Chassis Mount, PN Flange, Machined Contacts, Solder Bucket, Nickel Finish. Comparable to PN# NC7MP
