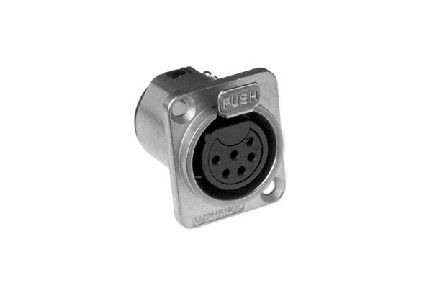

AC6AFDZ 6 Pole XLR Female Chassis Mount, D Type, Machined C

AC6AFDZ 6 Pole XLR Female Chassis Mount, D Type, Machined Contacts, Solder Bucket, Nickel Finish. Comparable to PN# NC6FD-L-1

$0.00

Audio Cable Connector

PART NUMBER: AC6AFDZ

Datasheet:

Positions: 6
Gender: Male
Finish: Nickel
Current Carrying Capacity: 7.5A
IP Rating: IP40
Contact Type: Machined
Contact Plating: Silver
Termination: Solder
Max Wire Gauge: 18AWG
Flammability Rating: UL94V-0
Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
Service Voltage RMS: 133V (Not suitable for domestic applications above 50V)
Test Voltage AC RMS: 1400V
Typical Contact Resistance: < 3mΩ
Insulation Resistance: > 100mΩ
Operating Temperature: -25°C to +75°C (-13°F to +167°F)
Mating Cycles: 1000
Housing Material: Diecast Zinc Alloy
Application(s): Audio & Lighting

QUANTITY

6 Pole XLR Female Chassis Mount, D Type, Machined Contacts, Solder Bucket, Nickel Finish. Comparable to PN# NC6FD-L-1
