AC5FAH-AU-B 5 Pole XLR Female Chassis Mount, A Type, Horizo

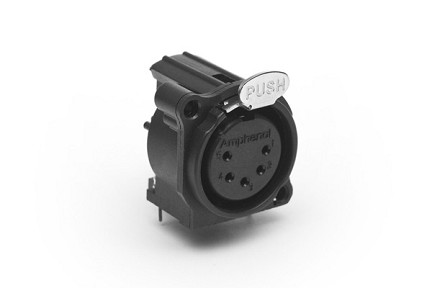

AC5FAH-AU-B 5 Pole XLR Female Chassis Mount, A Type, Horizontal PCB Mount, Latching, Black Finish. Comparable to PN# NC5FAH

$0.00

Audio Cable Connector

PART NUMBER: AC5FAH-AU-B

Datasheet:

Positions: 5
Finish: Black
Current Carrying Capacity: 3A
Gender: Female
Housing Material: Diecast Zinc Alloy
IP Rating: IP40
Mating Cycles: 1500
Typical Contact Resistance: <5mΩ
Insertion and Withdrawal Force: >10 - > 3
Retention Spring separating force: >120N
Contact Plating: 0.05µm gold over 2µm nickel
Mounting Screw Torque max: 1.5Nm
Service Voltage RMS: 133V ( Not suitable for domestic applications above 50V)
Test Voltage AC RMS: 1500V
Operating Temperature: -25°C to +75°C (-13°F to +167°F)
Insulation Resistance: 2GΩ
Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
Termination: Printed Circuit Boards (PCB)
Fastening A Type Connectors: Self-Tapping PT screw with thread 2.9 x 1.06 and of Tri-rondular configuration
Flammability Rating: UL94V-0
Application(s): Audio & Lighting

QUANTITY

5 Pole XLR Female Chassis Mount, A Type, Horizontal PCB Mount, Latching, Black Finish. Comparable to PN# NC5FAH
