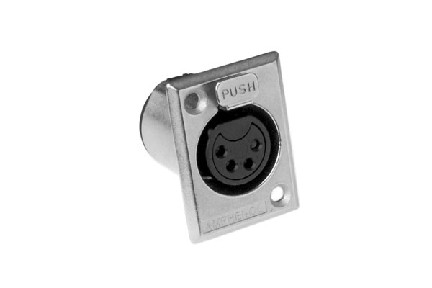

AC4FPZ 4 Pole XLR Female Chassis Mount, P Flange, Stamped Contacts. Comparable to PN# NC4FP1, D4F, XLR-4-31, XLB2-4-31
AC4FPZ 4 Pole XLR Female Chassis Mount, P Flange, Stamped Contacts. Comparable to PN# NC4FP1, D4F, XLR-4-31, XLB2-4-31

AC4FPZ 4 Pole XLR Female Chassis Mount, P Flange, Stamped Contacts. Comparable to PN# NC4FP1, D4F, XLR-4-31, XLB2-4-31

$0.00
XLR Female Chassis Mount
PART NUMBER: AC4FPZ
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Positions: 4
  • Gender: Female
  • Current Carrying Capacity: 10A
  • Housing Material: Diecast Zinc Alloy
  • Finish: Nickel
  • Contact Type: Stamped
  • IP Rating: IP40
  • Termination: Solder Bucket / Printed Circuit Board (PCB)
  • Max Wire Gauge: 16AWG
  • Operating Temperature: -25°C to +75°C (-13°F to +167°F)
  • Mating Cycles: 1000
  • Flammability Rating: UL94V-0
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
  • Application(s): Audio & Lighting
4 Pole XLR Female Chassis Mount, P Flange, Stamped Contacts. Comparable to PN# NC4FP1, D4F, XLR-4-31, XLB2-4-31
