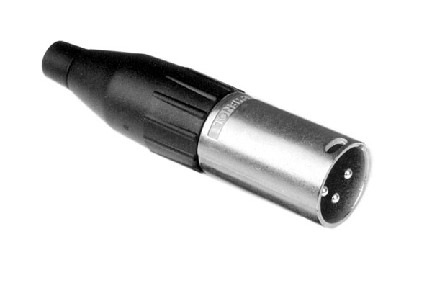

AC3MM 3 Pole XLR Male Cable Connector, Machined Contacts, Nickel Finish. Comparable to PN# NC3MX, AA3M, XLG-3-12, XLR-3-12C, ITT Cannon, XLB2-3-12

$0.00

Audio Cable Connector

PART NUMBER: AC3MM

Datasheet:

Finish: Nickel
Positions: 3
Gender: Male
Contact Plating: Silver
Contact Type: Machined
IP Rating: IP40
Current Carrying Capacity: 15A
Termination: Solder
Max Wire Gauge: 14AWG
Flammability Rating: UL94V-0
Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
Service Voltage RMS: 133V (not suitable for domestic applications above 50V)
Test Voltage AC RMS: 1400V
Typical Contact Resistance: < 3mΩ
Insulation Resistance: < 1GΩ
Operating Temperature: -25°C to +75°C (-13°F to +167°F)
Insertion and Withdrawal Force: > 10N - < 30N
Typical Cable Retention Force: Approximately 22Kg to 44Kg, depending on cable material and diameter
Cable OD Range: 3mm to 6.5mm (0.11" to 0.255")
Cable OD Range Large Solder: 6.5mm to 8mm (0.255" to 0.314")
Mating Cycles: 1000
Housing Material: Diecast Zinc Alloy
Application(s): Audio & Lighting
