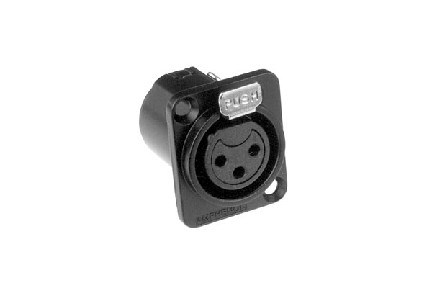

AC3FDZB BULK 3 Pole XLR Metal Female Chassis Mount, D Type, Stamped Contacts, Solder Bucket, Black Finish, Bulk Packaging. Comparable to PN# NC3FD-L-1-BAG-D
AC3FDZB BULK 3 Pole XLR Metal Female Chassis Mount, D Type, Stamped Contacts, Solder Bucket, Black Finish, Bulk Packaging. Comparable to PN# NC3FD-L-1-BAG-D

AC3FDZB BULK 3 Pole XLR Metal Female Chassis Mount, D Type, Stamped Contacts, Solder Bucket, Black Finish, Bulk Packaging. Comparable to PN# NC3FD-L-1-BAG-D

$0.00
Audio Cable Connector
PART NUMBER: AC3FDZB BULK
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Positions: 3
  • Gender: Female
  • Finish: Black
  • Current Carrying Capacity: 15A
  • IP Rating: IP40
  • Contact Type: Stamped
  • Contact Plating: Silver
  • Termination: Solder Bucket
  • Max Wire Gauge: 14AWG
  • Flammability Rating: UL94V-0
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
  • Service Voltage RMS: 133V (Not suitable for domestic applications above 50V)
  • Test Voltage AC RMS: 1400V
  • Typical Contact Resistance: < 3mΩ
  • Insulation Resistance: > 100mΩ
  • Operating Temperature: -25°C to +75°C (-13°F to +167°F)
  • Mating Cycles: 1000
  • Housing Material: Diecast Zinc Alloy
  • Application(s): Audio & Lighting
3 Pole XLR Metal Female Chassis Mount, D Type, Stamped Contacts, Solder Bucket, Black Finish, Bulk Packaging. Comparable to PN# NC3FD-L-1-BAG-D
