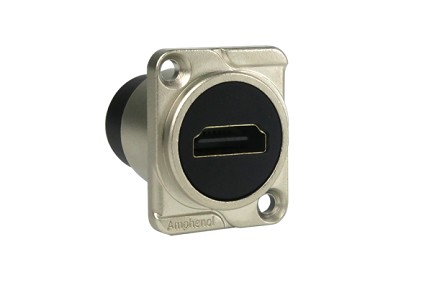

AC-HDMI-RR HDMI Data Chassis Mounts, D Type, Nickel Finish. Comparable to PN# NAHDMI-W
AC-HDMI-RR HDMI Data Chassis Mounts, D Type, Nickel Finish. Comparable to PN# NAHDMI-W

AC-HDMI-RR HDMI Data Chassis Mounts, D Type, Nickel Finish. Comparable to PN# NAHDMI-W

$0.00
HDMI Data Chassis Mount
PART NUMBER: AC-HDMI-RR
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Current Carrying Capacity: 10A (Depends on Mating Connector)
  • Housing Material: Diecast Zinc Alloy EZDA No.3
  • Finish: Nickel
  • Contact Type: Brass Alloy
  • Contact Plating: Gold
  • IP Rating: IP40
  • Termination: Thru-adaptor
  • Max Wire Gauge: AWG 14 - 2.5mm²
  • Operating Temperature: -25°C to +75°C (-13°F to +167°F)
  • Mating Cycles: 1000
  • Flammability Rating: UL94V-0
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
  • Application(s): Audio & Lighting
HDMI Data Chassis Mounts, D Type, Nickel Finish
