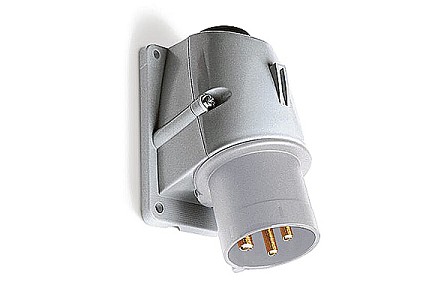

2CMA193324R1000 3P+E Wall Mounted Inlet. Replaces Part# 332BS9
2CMA193324R1000 3P+E Wall Mounted Inlet. Replaces Part# 332BS9

2CMA193324R1000 3P+E Wall Mounted Inlet. Replaces Part# 332BS9

$0.00
Inlet
PART NUMBER: 2CMA193324R1000
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Number of Poles: 4
  • Contacts: 3P+E
  • Clock Position: 9Hour
  • Current Rating: 32 A
  • Voltage Rating: 200- 250 V
  • Cable Cross Section: 2.5 - 10 mm²
  • International Standard: IEC 60309-1|IEC 60309-2
  • Shape: Circular
  • Protection Rating: IP44
  • Color: Blue
  • Housing Material: Plastic (PA)
  • RoHS Status: Following EU Directive 2011/65/EU
  • Mating Part(s): 2CMA102042R1000

3P+E Wall Mounted Inlet. Replaces Part# 332BS9
