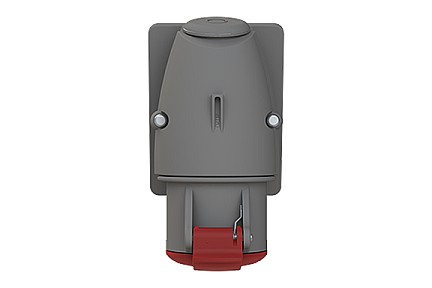

2CMA193106R1000 3P+E Wall Mounted Socket Outlet. Replaces P

2CMA193106R1000 3P+E Wall Mounted Socket Outlet. Replaces Part# 316RS6. Comparable to PNs# GW62481,114-6,D41S31,11645,110406,513.1656T,508136,PE 1664 PP,UI316-6S-RU

$0.00

Outlet

PART NUMBER: 2CMA193106R1000

Datasheet:

View / Download

Number of Poles: 4
Contacts: 3P+E
Clock Position: 6Hour
Current Rating: 16 A
Voltage Rating: 380- 415 V
Cable Cross Section: 1.5 - 4 mm²
International Standard: IEC 60309-1|IEC 60309-2
Shape: Circular
Protection Rating: IP44
Color: Red
Housing Material: Plastic (PA)
RoHS Status: Following EU Directive 2011/65/EU
Mating Part(s): 2CMA101956R1000

QUANTITY

Description

3P+E Wall Mounted Socket Outlet. Replaces Part# 316RS6. Comparable to PNs# GW62481,114-6,D41S31,11645,110406,513.1656T,508136,PE 1664 PP,UI316-6S-RU

2CMA101221R1000 3P+E Wall Mounted Socket Outlet. Replaces Part# 316ERS6W

REQUEST A QUOTE

2CMA101956R1000 3P+E Industrial Plug. Replaces Part# 316EP6

REQUEST A QUOTE

2CMA193178R1000 3P+E Panel Mounted Socket Outlet. Replaces Part# 316RU6

REQUEST A QUOTE

2CMA193106R1000 3P+E Wall Mounted Socket Outlet. Replaces Part# 316RS6. Comparable to PNs# GW62481,114-6,D41S31,11645,110406,513.1656T,508136,PE 1664 PP,UI316-6S-RU

SPECIFICATIONS:
