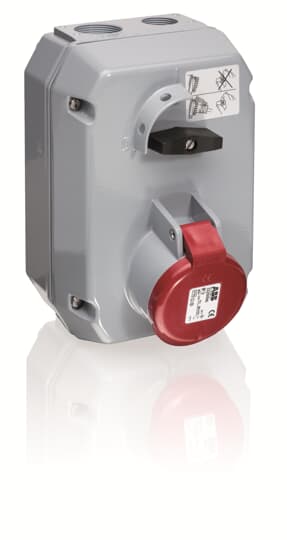

2CMA168036R1000 3P+E Female Industrial Switched Interlocked Socket Outlet, Metal, 63A, 415V, 6H, IP44. Replaces Part# 363MM6
2CMA168036R1000 3P+E Female Industrial Switched Interlocked Socket Outlet, Metal, 63A, 415V, 6H, IP44. Replaces Part# 363MM6

2CMA168036R1000 3P+E Female Industrial Switched Interlocked Socket Outlet, Metal, 63A, 415V, 6H, IP44. Replaces Part# 363MM6

$0.00
Outlet
PART NUMBER: 2CMA168036R1000
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Number of Poles: 4
  • Contacts: 4
  • Contacts Included?: No
  • Clock Position: 6Hour
  • Current Rating: 63
  • IP Protection Rating: IP44
  • Operating Temperature: -25°C to 40°C
  • Cable Cross Section: 6 - 25 mm²
  • Housing Material: Aluminium
  • Voltage Rating: 415V
  • Frequency: 50 hertz|60 hertz
  • Color Coding: Red
  • Shape: Circular
  • RoHS Status: Following EU Directive 2011/65/EU
  • International Electrical Standards: IEC 60309-1, -2, -4, IEC 60309
3P+E Female Industrial Switched Interlocked Socket Outlet, Metal, 63A, 415V, 6H, IP44. Replaces Part# 363MM6
