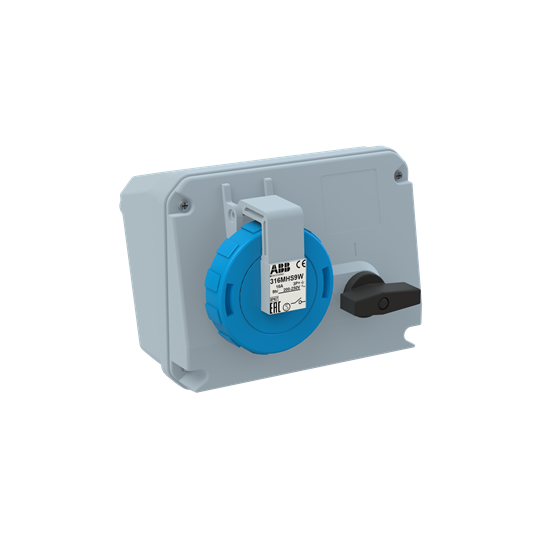

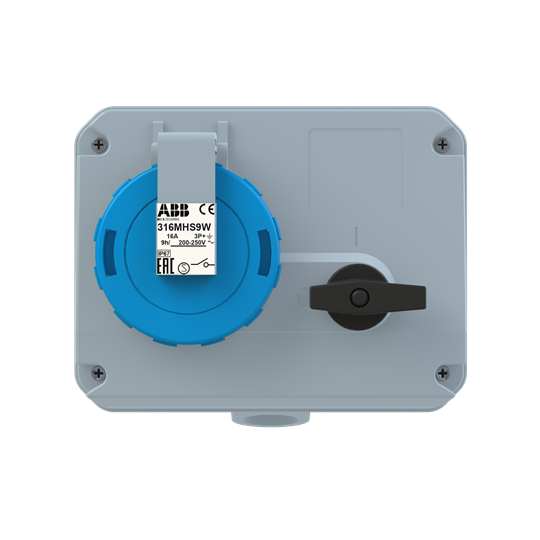

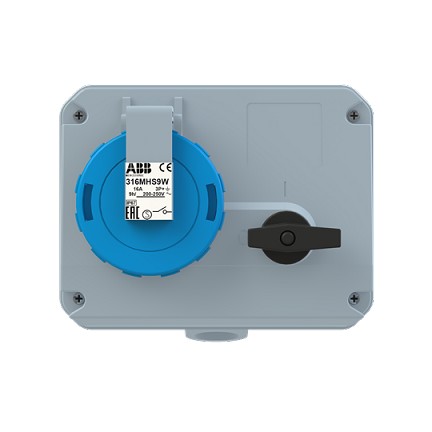

2CMA167811R1000 3P+E Female Industrial Switched Interlocked Socket Outlet, Horizontal, 20A, 250V, 9H, IP67. Replaces Part# 316MHS9W
2CMA167811R1000 3P+E Female Industrial Switched Interlocked Socket Outlet, Horizontal, 20A, 250V, 9H, IP67. Replaces Part# 316MHS9W

2CMA167811R1000 3P+E Female Industrial Switched Interlocked Socket Outlet, Horizontal, 20A, 250V, 9H, IP67. Replaces Part# 316MHS9W

$0.00
Outlet
PART NUMBER: 2CMA167811R1000
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Number of Poles: 4
  • Contacts: 4
  • Contacts Included?: No
  • Clock Position: 9Hour
  • Current Rating: 16
  • IP Protection Rating: IP67
  • Operating Temperature: -25°C to 40°C
  • Cable Cross Section: 1.5 - 4 mm²
  • Housing Material: Thermoplastic (PBT)
  • Voltage Rating: 250V
  • Frequency: 50 hertz|60 hertz
  • Color Coding: Blue
  • Shape: Circular
  • RoHS Status: Following EU Directive 2011/65/EU
  • International Electrical Standards: IEC 60309-1, -2, -4, IEC 60309
3P+E Female Industrial Switched Interlocked Socket Outlet, Horizontal, 20A, 250V, 9H, IP67. Replaces Part# 316MHS9W
