  5. 3P+N+E 6H 63A
  6. 2CMA167362R1000 3P+N+E Wall Mounted Inlet. Replaces Part# 463BS6W. Comparable to PNs# GW61453,535-6,G53S35,24062,669,245.6398,PEW 6365 SM,IIV463-6S-RI

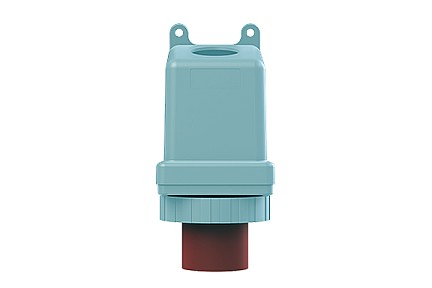

2CMA167362R1000 3P+N+E Wall Mounted Inlet. Replaces Part# 463BS6W. Comparable to PNs# GW61453,535-6,G53S35,24062,669,245.6398,PEW 6365 SM,IIV463-6S-RI
2CMA167362R1000 3P+N+E Wall Mounted Inlet. Replaces Part# 463BS6W. Comparable to PNs# GW61453,535-6,G53S35,24062,669,245.6398,PEW 6365 SM,IIV463-6S-RI

2CMA167362R1000 3P+N+E Wall Mounted Inlet. Replaces Part# 463BS6W. Comparable to PNs# GW61453,535-6,G53S35,24062,669,245.6398,PEW 6365 SM,IIV463-6S-RI

$0.00
Inlet
PART NUMBER: 2CMA167362R1000
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Number of Poles: 5
  • Contacts: 3P+N+E
  • Clock Position: 6Hour
  • Current Rating: 63 A
  • Voltage Rating: 200/346- 240/415 V
  • Cable Cross Section: 6 - 25 mm²
  • International Standard: IEC 60309-1|IEC 60309-2
  • Shape: Circular
  • Protection Rating: IP67|IP69
  • Color: Red
  • Housing Material: Thermoplastic (PBT)
  • RoHS Status: Following EU Directive 2011/65/EU

3P+N+E Wall Mounted Inlet. Replaces Part# 463BS6W. Comparable to PNs# GW61453,535-6,G53S35,24062,669,245.6398,PEW 6365 SM,IIV463-6S-RI
