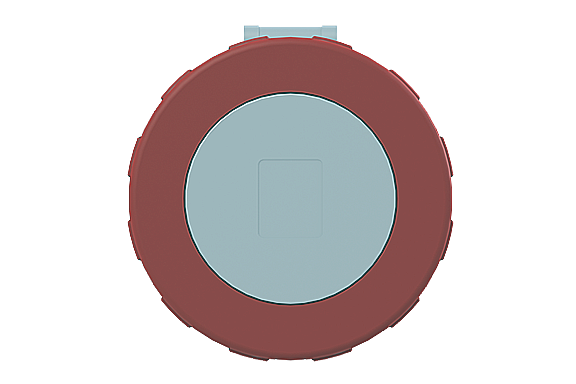

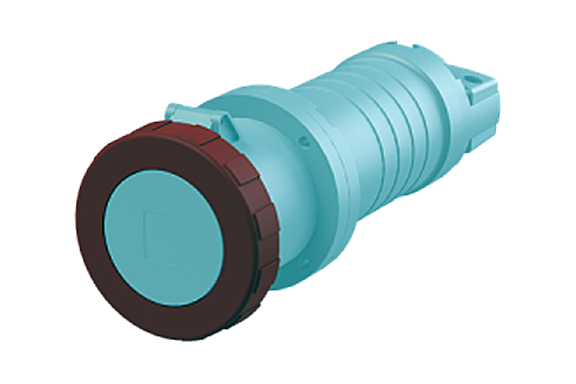

2CMA166924R1000 3P+E Industrial Connector. Replaces Part# 3

2CMA166924R1000 3P+E Industrial Connector. Replaces Part# 3125C6W. Comparable to PNs# GW62060,244-6,K44S35,3195,379406,318.12546,349538,PEW 12564 PV,SV3125-6S

$0.00

Connector

PART NUMBER: 2CMA166924R1000

Datasheet:

View / Download

Number of Poles: 4
Contacts: 3P+E
Clock Position: 6Hour
Current Rating: 125 A
Voltage Rating: 380- 415 V
Cable Cross Section: 16 - 50 mm²
International Standard: IEC 60309-1|IEC 60309-2
Shape: Circular
Protection Rating: IP67|IP69
Color: Red
Housing Material: Thermoplastic (PBT)
RoHS Status: Following EU Directive 2011/65/EU
Mating Part(s): 2CMA166816R1000

QUANTITY

Description

3P+E Industrial Connector. Replaces Part# 3125C6W. Comparable to PNs# GW62060,244-6,K44S35,3195,379406,318.12546,349538,PEW 12564 PV,SV3125-6S

2CMA164999R1000 2P+E, 3P+E and 3P+N+E Industrial Protective Cover for Plugs and Sockets. Replaces Part# GP125

REQUEST A QUOTE

2CMA166816R1000 3P+E Industrial Plug. Replaces Part# 3125P6W. Comparable to PNs# GW60060,044-6,S44S35,3195,279406,218.12536,249538,PEW 12564 SV,PV3125-6S

REQUEST A QUOTE

2CMA166924R1000 3P+E Industrial Connector. Replaces Part# 3125C6W. Comparable to PNs# GW62060,244-6,K44S35,3195,379406,318.12546,349538,PEW 12564 PV,SV3125-6S

SPECIFICATIONS:
