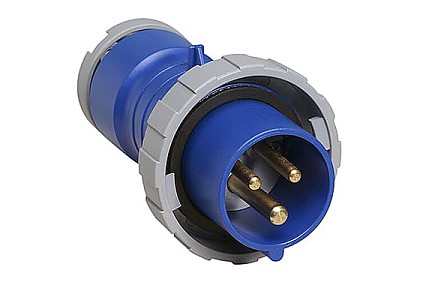

  6. 2CMA166722R1000 2P+E Industrial Plug. Replaces Part# 232P6W. Comparable to PNs# GW60037H,0232-6,S32S25,210594,239306,218.3233,477306,PEW 3263 SV,PV232-6S
2CMA166722R1000 2P+E Industrial Plug. Replaces Part# 232P6W. Comparable to PNs# GW60037H,0232-6,S32S25,210594,239306,218.3233,477306,PEW 3263 SV,PV232-6S
2CMA166722R1000 2P+E Industrial Plug. Replaces Part# 232P6W. Comparable to PNs# GW60037H,0232-6,S32S25,210594,239306,218.3233,477306,PEW 3263 SV,PV232-6S

2CMA166722R1000 2P+E Industrial Plug. Replaces Part# 232P6W. Comparable to PNs# GW60037H,0232-6,S32S25,210594,239306,218.3233,477306,PEW 3263 SV,PV232-6S

$0.00
Plug
PART NUMBER: 2CMA166722R1000
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Number of Poles: 3
  • Contacts: 2P+E
  • Clock Position: 6Hour
  • Current Rating: 32 A
  • Voltage Rating: 200- 250 V
  • Cable Cross Section: 2.5 - 6 mm²
  • International Standard: IEC 60309-1|IEC 60309-2
  • Shape: Circular
  • Protection Rating: IP67|IP69
  • Color: Blue
  • Housing Material: Thermoplastic (PBT)
  • RoHS Status: Following EU Directive 2011/65/EU

2P+E Industrial Plug. Replaces Part# 232P6W. Comparable to PNs# GW60037H,0232-6,S32S25,210594,239306,218.3233,477306,PEW 3263 SV,PV232-6S
