  6. 2CMA166618R1000 3P+N+E Industrial Connector. Replaces Part# 432C6W. Comparable to PNs# GW62042,2252-6,K52S35,310364,339,318.3247,473426,PEW 3265 PV,SV432-6S

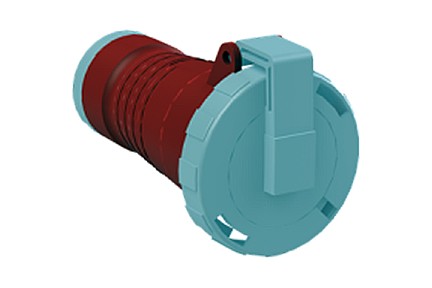

2CMA166618R1000 3P+N+E Industrial Connector. Replaces Part# 432C6W. Comparable to PNs# GW62042,2252-6,K52S35,310364,339,318.3247,473426,PEW 3265 PV,SV432-6S
2CMA166618R1000 3P+N+E Industrial Connector. Replaces Part# 432C6W. Comparable to PNs# GW62042,2252-6,K52S35,310364,339,318.3247,473426,PEW 3265 PV,SV432-6S

2CMA166618R1000 3P+N+E Industrial Connector. Replaces Part# 432C6W. Comparable to PNs# GW62042,2252-6,K52S35,310364,339,318.3247,473426,PEW 3265 PV,SV432-6S

$0.00
Connector
PART NUMBER: 2CMA166618R1000
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Number of Poles: 5
  • Contacts: 3P+N+E
  • Clock Position: 6Hour
  • Current Rating: 32 A
  • Voltage Rating: 200/346- 240/415 V
  • Cable Cross Section: 2.5 - 6 mm²
  • International Standard: IEC 60309-1|IEC 60309-2
  • Shape: Circular
  • Protection Rating: IP67|IP69
  • Color: Red
  • Housing Material: Thermoplastic (PBT)
  • RoHS Status: Following EU Directive 2011/65/EU
  • Mating Part(s): 2CMA167122R1000,2CMA166664R1000,2CMA100617R1000,2CMA100591R1000,2CMA166524R1000

3P+N+E Industrial Connector. Replaces Part# 432C6W. Comparable to PNs# GW62042,2252-6,K52S35,310364,339,318.3247,473426,PEW 3265 PV,SV432-6S
