  6. 2CMA166544R1000 2P+E Female Industrial Connector, 16A, 1H, IP69K. Replaces Part# 216C1W

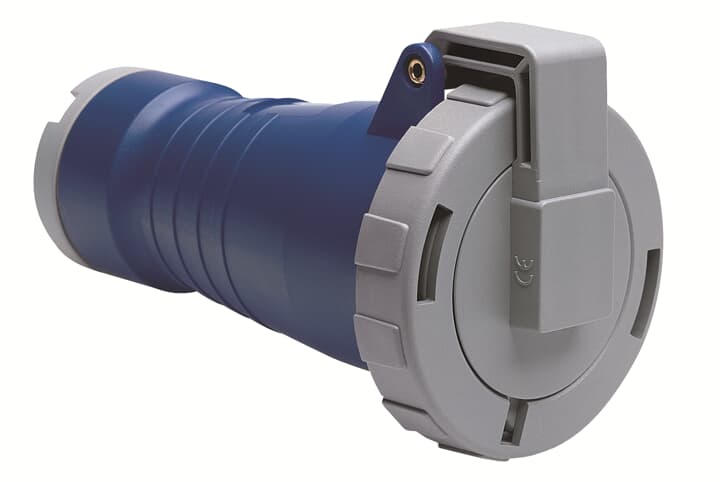

2CMA166544R1000 2P+E Female Industrial Connector, 16A, 1H, IP69K. Replaces Part# 216C1W
2CMA166544R1000 2P+E Female Industrial Connector, 16A, 1H, IP69K. Replaces Part# 216C1W

2CMA166544R1000 2P+E Female Industrial Connector, 16A, 1H, IP69K. Replaces Part# 216C1W

$0.00
Connector
PART NUMBER: 2CMA166544R1000
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Number of Poles: 3
  • Contacts: 3
  • Contacts Included?: No
  • Clock Position: 1Hour
  • Current Rating: 16
  • IP Protection Rating: IP69K
  • Housing Style: Straight
  • Operating Temperature: -25°C to 40°C
  • Cable Cross Section: 1 - 2.5 mm²
  • Housing Material: Thermoplastic (PBT)
  • Color Coding: Grey
  • Shape: Circular
  • RoHS Status: Following EU Directive 2011/65/EU
  • International Electrical Standards: IEC 60309-1, -2, IEC 60309
2P+E Female Industrial Connector, 16A, 1H, IP69K. Replaces Part# 216C1W
