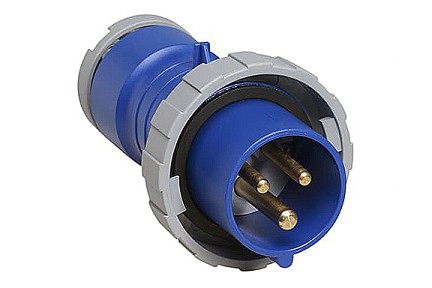

2CMA166476R1000 3P+E Industrial Plug. Replaces Part# 316P6W

2CMA166476R1000 3P+E Industrial Plug. Replaces Part# 316P6W. Comparable to PNs# GW60030H,0142-6,S41S35,210583,219406,218.1636,477413,PEW 1664 SV,PV316-6S

$0.00

Plug

PART NUMBER: 2CMA166476R1000

Datasheet:

View / Download

Number of Poles: 4
Contacts: 3P+E
Clock Position: 6Hour
Current Rating: 16 A
Voltage Rating: 380- 415 V
Cable Cross Section: 1 - 2.5 mm²
International Standard: IEC 60309-1|IEC 60309-2
Shape: Circular
Protection Rating: IP67|IP69
Color: Red
Housing Material: Thermoplastic (PBT)
RoHS Status: Following EU Directive 2011/65/EU
Mating Part(s): 2CMA167157R1000,2CMA100585R1000

QUANTITY

Description

3P+E Industrial Plug. Replaces Part# 316P6W. Comparable to PNs# GW60030H,0142-6,S41S35,210583,219406,218.1636,477413,PEW 1664 SV,PV316-6S

2CMA100585R1000 3P+E Male Industrial Plug, UL/CSA. Replaces Part# ABB416P6W. Comparable to PNs# HBL420P6W, AH416P6W, PS416P6W

REQUEST A QUOTE

2CMA167157R1000 3P+E Wall Mounted Socket Outlet. Replaces Part# 316RS6W. Comparable to PNs# GW62504,1142-6,D41S35,1137,119406,518.1656T,509136,PEW 1664 PP,UIV316-6S-RU

REQUEST A QUOTE

2CMA166476R1000 3P+E Industrial Plug. Replaces Part# 316P6W. Comparable to PNs# GW60030H,0142-6,S41S35,210583,219406,218.1636,477413,PEW 1664 SV,PV316-6S
