  6. 2CMA102013R1000 3P+E Female High Current Industrial Connector, 16A, 500V, 7H, IP44. Replaces Part# 316EC7

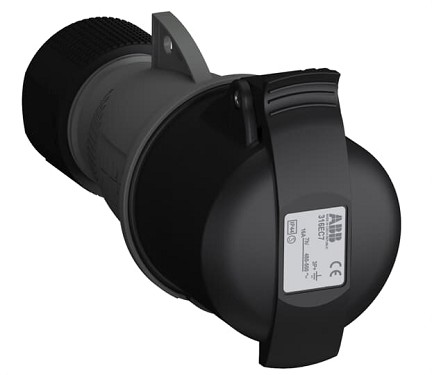

2CMA102013R1000 3P+E Female High Current Industrial Connector, 16A, 500V, 7H, IP44. Replaces Part# 316EC7
2CMA102013R1000 3P+E Female High Current Industrial Connector, 16A, 500V, 7H, IP44. Replaces Part# 316EC7

2CMA102013R1000 3P+E Female High Current Industrial Connector, 16A, 500V, 7H, IP44. Replaces Part# 316EC7

$0.00
Connector
PART NUMBER: 2CMA102013R1000
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Number of Poles: 4
  • Contacts: 4
  • Contacts Included?: No
  • Clock Position: 7Hour
  • Current Rating: 16
  • IP Protection Rating: IP44
  • Housing Style: Straight
  • Operating Temperature: -25°C to 40°C
  • Cable Cross Section: 1 - 2.5 mm²
  • Housing Material: Plastic (PA)
  • Voltage Rating: 500V
  • Frequency: 50 hertz|60 hertz
  • Color Coding: Black
  • Shape: Circular
  • RoHS Status: Following EU Directive 2011/65/EU
  • International Electrical Standards: IEC 60309-1, -2, IEC 60309
3P+E Female High Current Industrial Connector, 16A, 500V, 7H, IP44. Replaces Part# 316EC7
