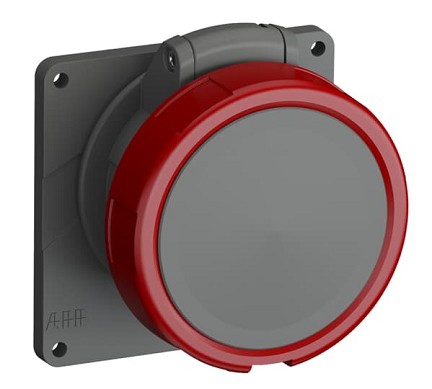

2CMA101305R1000 3P+N+E Female Panel Mounted Socket Outlet, 16A, 460V, 11H, IP67. Replaces Part# 416ERU11W
2CMA101305R1000 3P+N+E Female Panel Mounted Socket Outlet, 16A, 460V, 11H, IP67. Replaces Part# 416ERU11W

2CMA101305R1000 3P+N+E Female Panel Mounted Socket Outlet, 16A, 460V, 11H, IP67. Replaces Part# 416ERU11W

$0.00
Outlet
PART NUMBER: 2CMA101305R1000
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Number of Poles: 5
  • Contacts: 3P+N+E
  • Contacts Included?: No
  • Clock Position: 11Hour
  • Current Rating: 16
  • IP Protection Rating: IP67
  • Housing Style: Straight
  • Operating Temperature: -25°C to 40°C
  • Cable Cross Section: 1 - 2.5 mm²
  • Housing Material: Plastic (PA)
  • Voltage Rating: 460V
  • Frequency: 60 hertz
  • Color Coding: Red
  • Shape: Circular
  • RoHS Status: Following EU Directive 2011/65/EU
  • International Electrical Standards: IEC 60309-1, -2, IEC 60309
3P+N+E Female Panel Mounted Socket Outlet, 16A, 460V, 11H, IP67. Replaces Part# 416ERU11W
