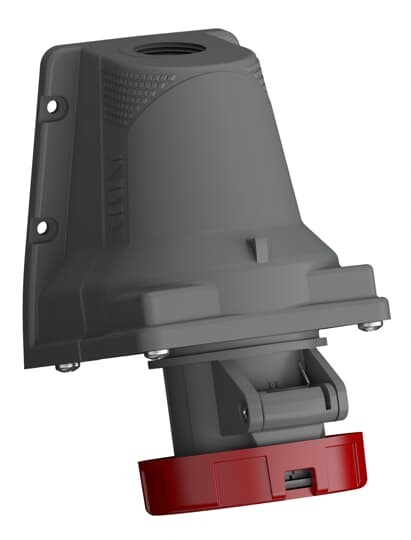

2CMA101214R1000 2P+E Female Wall Mounted Socket Outlet, 20A, 415V, 9H, IP67. Replaces Part# 216ERS9W
2CMA101214R1000 2P+E Female Wall Mounted Socket Outlet, 20A, 415V, 9H, IP67. Replaces Part# 216ERS9W

2CMA101214R1000 2P+E Female Wall Mounted Socket Outlet, 20A, 415V, 9H, IP67. Replaces Part# 216ERS9W

$0.00
Outlet
PART NUMBER: 2CMA101214R1000
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Number of Poles: 3
  • Contacts: 3
  • Contacts Included?: No
  • Clock Position: 9Hour
  • Current Rating: 20
  • IP Protection Rating: IP67
  • Operating Temperature: -25°C to 40°C
  • Cable Cross Section: 1 - 2.5 mm²
  • Housing Material: Plastic (PA)
  • Voltage Rating: 415V
  • Frequency: 50 hertz|60 hertz
  • Color Coding: Red
  • Shape: Circular
  • RoHS Status: Following EU Directive 2011/65/EU
  • International Electrical Standards: IEC 60309-1, -2, IEC 60309
2P+E Female Wall Mounted Socket Outlet, 20A, 415V, 9H, IP67. Replaces Part# 216ERS9W
