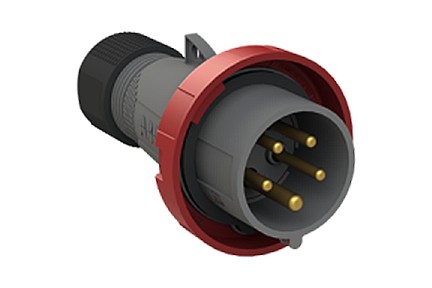

2CMA101089R1000 3P+N+E Industrial Plug. Replaces Part# 416EP6W
2CMA101089R1000 3P+N+E Industrial Plug. Replaces Part# 416EP6W

2CMA101089R1000 3P+N+E Industrial Plug. Replaces Part# 416EP6W

$0.00
Plug
PART NUMBER: 2CMA101089R1000
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Number of Poles: 5
  • Contacts: 3P+N+E
  • Clock Position: 6Hour
  • Current Rating: 16 A
  • Voltage Rating: 200/346- 240/415 V
  • Cable Cross Section: 1 - 2.5 mm²
  • International Standard: IEC 60309-1|IEC 60309-2
  • Shape: Circular
  • Protection Rating: IP67
  • Color: Red
  • Housing Material: Plastic (PA)
  • RoHS Status: Following EU Directive 2011/65/EU
  • Mating Part(s): 2CMA101136R1000,2CMA101230R1000

3P+N+E Industrial Plug. Replaces Part# 416EP6W
