  6. 2CMA100887R1000 2P+E Male Extra Low Voltage Plug, Secondary Key Position 12H, 32A, 50V, IP44. Replaces PN# PLV332-12

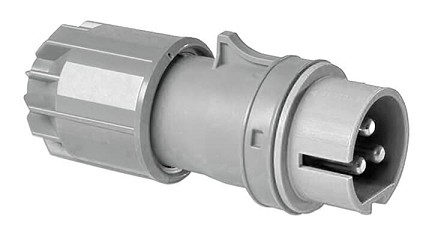

2CMA100887R1000 2P+E Male Extra Low Voltage Plug, Secondary Key Position 12H, 32A, 50V, IP44. Replaces PN# PLV332-12
2CMA100887R1000 2P+E Male Extra Low Voltage Plug, Secondary Key Position 12H, 32A, 50V, IP44. Replaces PN# PLV332-12

2CMA100887R1000 2P+E Male Extra Low Voltage Plug, Secondary Key Position 12H, 32A, 50V, IP44. Replaces PN# PLV332-12

$0.00
Plug
PART NUMBER: 2CMA100887R1000
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Number of Poles: 3
  • Contacts: 3
  • Contacts Included?: No
  • Clock Position: 12Hour
  • Current Rating: 32
  • IP Protection Rating: IP44
  • Housing Style: Straight
  • Operating Temperature: -25°C to 40°C
  • Cable Cross Section: 1 - 10 mm²
  • Housing Material: Plastic
  • Voltage Rating: 50V
  • Frequency: 50 hertz|60 hertz
  • Color Coding: White
  • Shape: Circular
  • RoHS Status: Following EU Directive 2011/65/EU
  • International Electrical Standards: IEC 60309-1, -2, IEC 60309
2P+E Male Extra Low Voltage Plug, Secondary Key Position 12H, 32A, 50V, IP44. Replaces PN# PLV332-12
