PRM2400-G3-PLG 2 Position Female Quick Connect Plug Kit. P

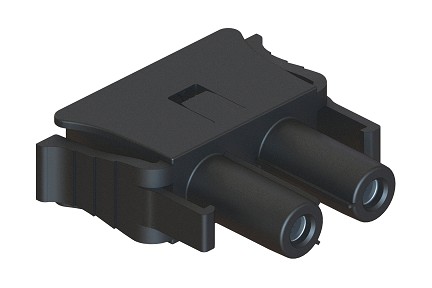

PRM2400-G3-PLG 2 Position Female Quick Connect Plug Kit. PRM Series ™, Power Rack Mount. 2.4mm machined socket contacts and retainer clip included. Wire range 14-16AWG, 20A

$0.00

Plug Kit

PART NUMBER: PRM2400-G3-PLG

Datasheet:

View / Download 3D Model:

View/Download

Positions: 2
Contact Size: 2.4mm
Contact Type: Socket
Contact Material: Copper Alloy Silver Plated
Contacts included? ( Yes/No): TRUE
Amperage: Up to 20A
Voltage: 250
Wire Range: 14-16
Housing Material: GF PA 6/6
Flame Rating: UL94 V-0
Shape: Rectangular
Operating Temperature: -40°C to +125°C
Mating Cycles: >500
Mating Parts: PRM2400-G2-PNL

QUANTITY

Description

2 Position Female Quick Connect Plug Kit. PRM Series ™, Power Rack Mount. 2.4mm machined socket contacts and retainer clip included. Wire range 14-16AWG, 20A
