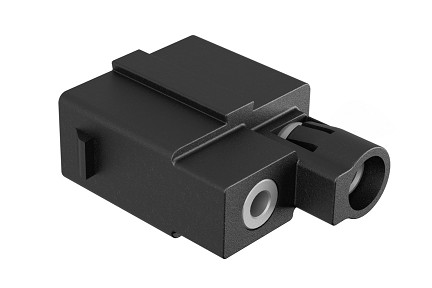

  4. PRM2400-G2-PNL 2 Position Male Quick Connect Receptacle Kit. PRM Series™ Quick connect in power rack mount applications. 2.4mm machined pin contacts included. Wire range 12-14 AWG, 32A
PRM2400-G2-PNL  2 Position Male  Quick Connect Receptacle Kit. PRM Series™ Quick connect in power rack mount applications. 2.4mm machined pin contacts included. Wire range 12-14 AWG, 32A
PRM2400-G2-PNL 2 Position Male Quick Connect Receptacle Kit. PRM Series™ Quick connect in power rack mount applications. 2.4mm machined pin contacts included. Wire range 12-14 AWG, 32A

PRM2400-G2-PNL 2 Position Male Quick Connect Receptacle Kit. PRM Series™ Quick connect in power rack mount applications. 2.4mm machined pin contacts included. Wire range 12-14 AWG, 32A

$0.00
Receptacle Kit
PART NUMBER: PRM2400-G2-PNL
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Positions: 2
  • Contact Size: 2.4mm
  • Contact Type: Pin
  • Contact Material: Copper Alloy Silver Plated
  • Contacts included? ( Yes/No): TRUE
  • Amperage: Up to 32A
  • Voltage: 250
  • Wire Range: 12-14
  • Housing Material: GF PA 6/6
  • Flame Rating: UL94 V-0
  • Shape: Rectangular
  • Operating Temperature: -40°C to +125°C
  • Mating Cycles: >500
  • Mating Parts: PRM2400-GX-PLG
2 Position Male Quick Connect Receptacle Kit. PRM Series™ Quick connect in power rack mount applications. 2.4mm machined pin contacts included. Wire range 12-14 AWG, 32A
