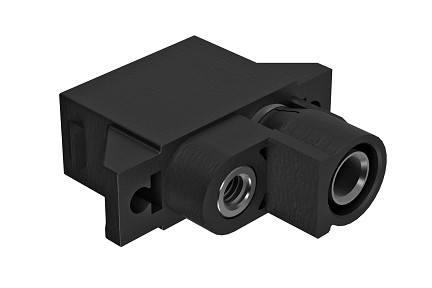

  4. PRM0400-G3-PNL 2 Position Male Quick Connect Receptacle Kit. PRM Series™ Power Rack Mount. 4.0mm 1 X 8AWG Machined Contact and 1 X 8-32 Threaded Bus Bar Contact, Wire range 8-10AWG,70A
PRM0400-G3-PNL  2 Position Male  Quick Connect Receptacle Kit. PRM Series™ Power Rack Mount. 4.0mm 1 X 8AWG Machined Contact and 1 X 8-32 Threaded Bus Bar Contact, Wire range 8-10AWG,70A
PRM0400-G3-PNL 2 Position Male Quick Connect Receptacle Kit. PRM Series™ Power Rack Mount. 4.0mm 1 X 8AWG Machined Contact and 1 X 8-32 Threaded Bus Bar Contact, Wire range 8-10AWG,70A

PRM0400-G3-PNL 2 Position Male Quick Connect Receptacle Kit. PRM Series™ Power Rack Mount. 4.0mm 1 X 8AWG Machined Contact and 1 X 8-32 Threaded Bus Bar Contact, Wire range 8-10AWG,70A

$0.00
Receptacle Kit
PART NUMBER: PRM0400-G3-PNL
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Positions: 2
  • Contact Size: 4.0mm
  • Contact Type: Pin
  • Contact Material: Copper Alloy Silver Plated
  • Contacts included? ( Yes/No): TRUE
  • Amperage: 70A Max
  • Voltage: 250
  • Wire Range: 8-10
  • Housing Material: GF PA 6/6
  • Flame Rating: UL94 V-0
  • Shape: Rectangular
  • Operating Temperature: -40°C to +125°C
  • Mating Cycles: >500
  • Mating Parts: PRM0400-GX-PLG
2 Position Male Quick Connect Receptacle Kit. PRM Series™ Power Rack Mount. 4.0mm 1 X 8AWG Machined Contact and 1 X 8-32 Threaded Bus Bar Contact, Wire range 8-10AWG,70A
