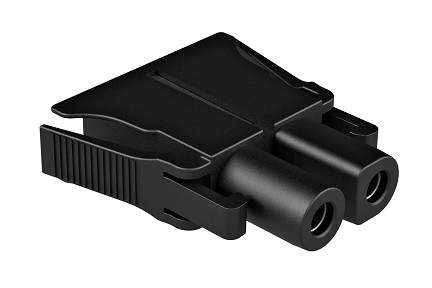

PRM0400-G2-PLG 2 Position Female Quick Connect Plug Kit. PRM Series ™, Power Rack Mount. 4.0mm Machined RADSOK® R8S Socket Contacts, Retainer Clip, Wire range 10-12AWG, 43A
PRM0400-G2-PLG 2 Position Female Quick Connect Plug Kit. PRM Series ™, Power Rack Mount. 4.0mm Machined RADSOK® R8S Socket Contacts, Retainer Clip, Wire range 10-12AWG, 43A

PRM0400-G2-PLG 2 Position Female Quick Connect Plug Kit. PRM Series ™, Power Rack Mount. 4.0mm Machined RADSOK® R8S Socket Contacts, Retainer Clip, Wire range 10-12AWG, 43A

$0.00
Plug Kit
PART NUMBER: PRM0400-G2-PLG
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Positions: 2
  • Contact Size: 4.0mm
  • Contact Type: Socket
  • Contact Material: Copper Alloy Silver Plated
  • Contacts included? ( Yes/No): TRUE
  • Amperage: Up to 43A
  • Voltage: 250
  • Wire Range: 10-12
  • Housing Material: GF PA 6/6
  • Flame Rating: UL94 V-0
  • Shape: Rectangular
  • Operating Temperature: -40°C to +125°C
  • Mating Cycles: >500
  • Mating Parts: PRM0400-G3-PNL
2 Position Female Quick Connect Plug Kit. PRM Series ™, Power Rack Mount. 4.0mm Machined RADSOK® R8S Socket Contacts, Retainer Clip, Wire range 10-12AWG, 43A
