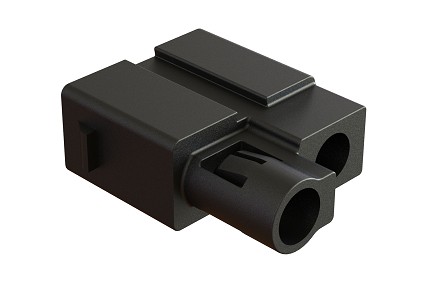

PL000733 2.4mm, Male Receptacle Housing, PRM Series™
PL000733 2.4mm, Male Receptacle Housing, PRM Series™

PL000733 2.4mm, Male Receptacle Housing, PRM Series™

$0.00
Receptacle Housing
PART NUMBER: PL000733
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Positions: 2
  • Contact Size: 2.4mm
  • Contact Type: Pin
  • Contacts included?: No
  • Amperage: Up to 32A
  • Voltage: 250
  • Wire Range: 10-12AWG
  • Mating Cycles: >250
  • Housing Material: GF PA 6/6
  • Flammability Rating: UL94 V-0
  • Shape: Rectangular
  • Operating Temperature: -40°C to +125°C
  • Mating Parts: PL000734
2.4mm, Male Receptacle Housing, PRM Series™
