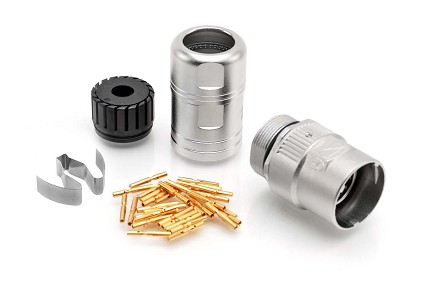

  7. P30742-S2 16 position straight plug connector kit, Checkmate™, P Type, counter-clockwise insert, 7.5-11.0mm cord grip, female, contacts included
P30742-S2 16 position straight plug connector kit, Checkmate™, P Type, counter-clockwise insert, 7.5-11.0mm cord grip, female, contacts included
P30742-S2 16 position straight plug connector kit, Checkmate™, P Type, counter-clockwise insert, 7.5-11.0mm cord grip, female, contacts included

P30742-S2 16 position straight plug connector kit, Checkmate™, P Type, counter-clockwise insert, 7.5-11.0mm cord grip, female, contacts included

$0.00
M23 Checkmate™ Plug Kit
PART NUMBER: P30742-S2
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • No of Positions: 16
  • Cable OD Range: 7.5-11.0mm
  • Contact Resistance: <5mΩ
  • Temperature Range: -20° to 130°C
  • AWG: 18-28
  • Max Current: 9A
  • Voltage: 125V
  • Contact Type: Socket
  • Contact Size: 1.0mm
  • Protection: IP67
  • Housing Body: Zinc Die Cast, Nickel Plated
  • Coupling Nut: Copper Alloy, nickel plated
  • Insulation Inserts: PA66, UL94 V1
  • Sealing Material: Dupont Viton®
  • Min Mating Cycles: >500
  • Wire Range AWG: 18-30
  • Extraction Tool: 50-54931-1
  • Strain Relief Clamp Range: 7.5-11.0mm
  • Mating Parts: MA2LAE1600, MA5RAE1601, MA5RAE1602, MA2JAE1600
16 position straight plug connector kit, Checkmate™, P Type, counter-clockwise insert, 7.5-11.0mm cord grip, female, contacts included
