PowerBOSS M40 Checkmate

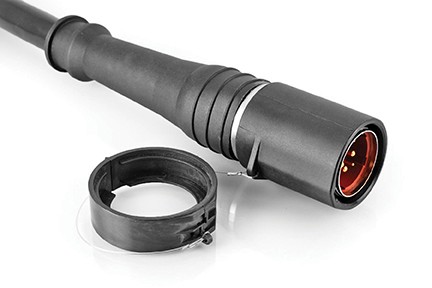

P30237-Mxxx 6 Position Single-ended Cable Assembly featuring Checkmate™, Male Straight, 8 AWG, PVC Jacket, Dual-rated, Black
P30237-Mxxx 6 Position Single-ended Cable Assembly featuring Checkmate™, Male Straight, 8 AWG, PVC Jacket, Dual-rated, Black
P30237-Mxxx 6 Position Single-ended Cable Assembly featuring Checkmate™, Male Straight, 8 AWG, PVC Jacket, Dual-rated, Black
$0.00
6 Position - Plug
PART NUMBER:
P30237-Mxxx
Datasheet
:
View / Download
6
Circular
67
32
SPECIFICATIONS:
48 Hour Salt Spray:
Per MIL-STD-202 Method 101
Amperage:
32 power and 5 signal
Amps Signal:
5
AWG:
8
Bend Radius Limiter:
Thermoplastic, Black
Conductor Insulation:
PVC
Connector Color:
Black
Contact Plating:
Gold Flash Plating over Copper Alloy
Contacts:
6 (3+PE Power and 2 Signal)
Coupling Nut:
Machined Aluminum, Anodized
Dielectric Test Voltage:
2200V
Female /Male:
Male
Insulation Insert:
Thermoplastic, UL 94/V-0
Insulation Resistance:
5000MΩ
Jacket:
PVC
Mating Cycles:
>500
Positions:
6
Protection:
IP67 (Mated Condition)
Rating:
Dual-rated
Temp Range:
-20°C to 105°C
Thermal Shock:
Per MIL-STD-202 Method 101
Vibration Resistance:
Per MIL-STD-202 Method 101
Voltage:
600
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
6 Position Single-ended Cable Assembly featuring Checkmate™, Male Straight, 8 AWG, PVC Jacket, Dual-rated, Black
Automated Machine Tools,Automated Assembly,Material Handling,Distributed Power and Control of Motors,Automotive Processing,Parcel Distribution,Overhead Transport,Palletizing,Packing & Shrink Wrapping,Airport Baggage Handling,Food/Beverage,Mining
Distributed Power and Control / Factory Automation~PowerBOSS M40|Distributed Power and Control / Factory Automation~Checkmate
600
Cable Assemblies~Single-ended|Cable Assemblies~Pin (Male)|Connectors~Quick Locking Connectors
