  6. MC47BC05Mxx 1/2" 4 Position Single-ended Plug Cable Assembly, Male 90°
MC47BC05Mxx 1/2
MC47BC05Mxx 1/2' 4 Position Single-ended Plug Cable Assembly, Male 90°

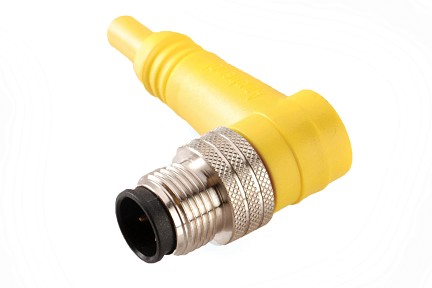

MC47BC05Mxx 1/2" 4 Position Single-ended Plug Cable Assembly, Male 90°

$0.00
4 Position - Plug
PART NUMBER: MC47BC05Mxx
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Style: 90°
  • Cable Diameter: .20" (5.1mm)
  • Voltage: 300
  • AWG: 22
  • Positions: 4
  • Contact Material: Copper Alloy
  • Contact Plating: 5µ" (min) Gold over 25µ" (min) Nickel
  • Protection: IP67
  • Temperature Range: -20°C to +105°C
  • Jacket Material: PVC
  • External/Internal Threads: Internal
  • Amperage: 4A
  • Body Material: Oil resistant PVC
  • Measurement Notes: Mxx = length in meters
  • Cable Color: Yellow
  • UL: STOOW, AWM Style 2661
  • CSA: AWM I/II A/B
  • Coupling Nut: Machined Aluminum, Anodized
  • Cable Insulation: PVC
  • Seal and O-rings: Nitrile Rubber
1/2" 4 Position Single-ended Plug Cable Assembly, Male 90°
