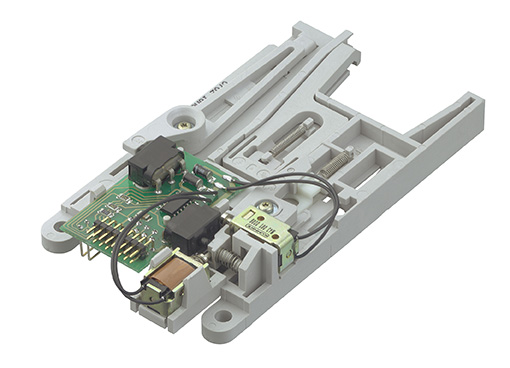

  5. C70210M0089102 PUSHMATIC® II with card locking. Specially developed for outdoor applications. Features include card locking in active position, a robust design suitable for applications such as vending, banking, and access control systems.
C70210M0089102 PUSHMATIC® II with card locking. Specially developed for outdoor applications. Features include card locking in active position, a robust design suitable for applications such as vending, banking, and access control systems.
C70210M0089102 PUSHMATIC® II with card locking. Specially developed for outdoor applications. Features include card locking in active position, a robust design suitable for applications such as vending, banking, and access control systems.

C70210M0089102 PUSHMATIC® II with card locking. Specially developed for outdoor applications. Features include card locking in active position, a robust design suitable for applications such as vending, banking, and access control systems.

$0.00
C702B PUSHMATIC® II
PART NUMBER: C70210M0089102

SPECIFICATIONS:

  • Unlocking Solenoid Current Consumption: ~ 1.1 A
  • Current Consumption: < 10mA
  • Current Pulse Length: < 2 s
  • Insulation Resistance: < 10(9) mΩ
  • Contact Resistance: < 100000 mΩ
  • Extraction Force: < 12 N
  • Shock (w/o Disconnection): < 40 g; 11 ms; halfsine; 100 / direction in 3 axis
  • Pulse Break: > 1 s
  • Unlocking Solenoid Current Pulse Length: 10-25 ms
  • Shock (w/o Destruction): 200g; 6ms; halfsine; 2 / direction in 3 axis
  • Unlocking Solenoid Rated Voltage: 24 V ± 10%
  • Power Failure Solenoid Rated Voltage: 24 V ± 10%
  • Climatic Category: 25 / 70 / 21
  • Operating Temperature: -25°C to +70°C
  • Mechanical Lifetime: 300,000 mating cycles
  • Storage Temperature: -40°C to +85°C
  • Operating Voltage: 5 ± 10 % V
  • Voltage Proof: 500V
  • Card Presence Switch: Card detection, card in slot
  • EMV Switch: Card in active position, detects early pull out
  • Function: Chip card reader
  • Locking Detector: Contacts locked, card in active position
  • Vibration: f = 10 to 60 Hz; 0.5 mm DA; f = 60 to 500 Hz; a = 2.5 g; 2 h / Axis
  • Suitable Connector: Female connector - 2 x 8 contacts 2 mm pitch
  • Contact Position: ISO
  • Termination: Male connector - 2 x 8 contacts 2 mm pitch
  • Card Handling: PUSHMATIC II
  • Style: PUSHMATIC II
  • Applications: Transportation, Entertainment, Medical, Lighting & Traffic Control
PUSHMATIC® II with card locking. Specially developed for outdoor applications. Features include card locking in active position, a robust design suitable for applications such as vending, banking, and access control systems.
