  5. C2152BG2100001 2 Pole High Voltage Female (Socket) Receptacle, B Code, 520A, 1500V, 0.25mm² wires for HVIL

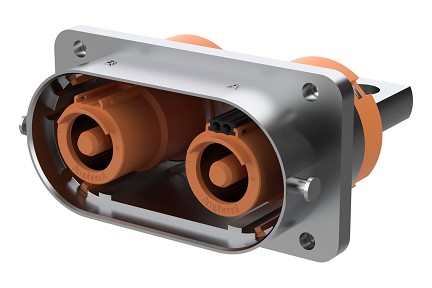

C2152BG2100001 2 Pole High Voltage Female (Socket) Receptacle, B Code, 520A, 1500V, 0.25mm² wires for HVIL
C2152BG2100001 2 Pole High Voltage Female (Socket) Receptacle, B Code, 520A, 1500V, 0.25mm² wires for HVIL

C2152BG2100001 2 Pole High Voltage Female (Socket) Receptacle, B Code, 520A, 1500V, 0.25mm² wires for HVIL

$0.00
Receptacle
PART NUMBER: C2152BG2100001
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Positions: 2
  • Contact Size: 14mm RADSOK®
  • Contact Type (Pin or Socket): Socket
  • Gender: Female
  • Contacts included? ( Yes/No): Yes
  • Contact material: Copper Alloy
  • Rated Current (40 °C): 520
  • Rated Voltage: 1500
  • Wire Range: 0.25mm² wires for HVIL
  • IP Protection: IP67 / IP69K
  • Housing material: Zinc diecast, nickel plated
  • Locking System: Lever locking with CPA
  • Termination: Busbar - screw connection
  • Shape: Circular
  • Temperature Range: -40°Cto+125°C
  • High Voltage Interlock (HVIL): Yes
  • Voltage Standard: IEC 60664-1
  • Mating Cycles: >50
  • Flammibility Rating: UL 94 V0
  • Sealing Material: Silicone
  • Mating Part(s)*: C2152BH1115001
2 Pole High Voltage Female (Socket) Receptacle, B Code, 520A, 1500V, 0.25mm² wires for HVIL

Related Items

C2152BH1115001 2 Pole High Voltage Male (Pin) Cable Connector, B Code, 520A, 1500V, 150mm² Wire, HVIL, Plastic Lever
C2152BH1115001 2 Pole High Voltage Male (Pin) Cable Connector, B Code, 520A, 1500V, 150mm² Wire, HVIL, Plastic Lever
